COATFLEX Environment
COATFLEX Environment delivers durable, weather-resistant performance engineered to protect, contain, and sustain in challenging outdoor environments.
| High resistance |
| Fireproof |
| UV resistant |
| Flat and low unroll shrinkage |
| Easy welding |
Format
- 670 ou 900 grs/m2
- Width 2.5 or 3.0m
- Length : 60 or 300m
Colors
- RAL : 1003, 3002, 5002, 6026, 7035, 7038, 9010 et 9016
- Other colors available upon request
Description

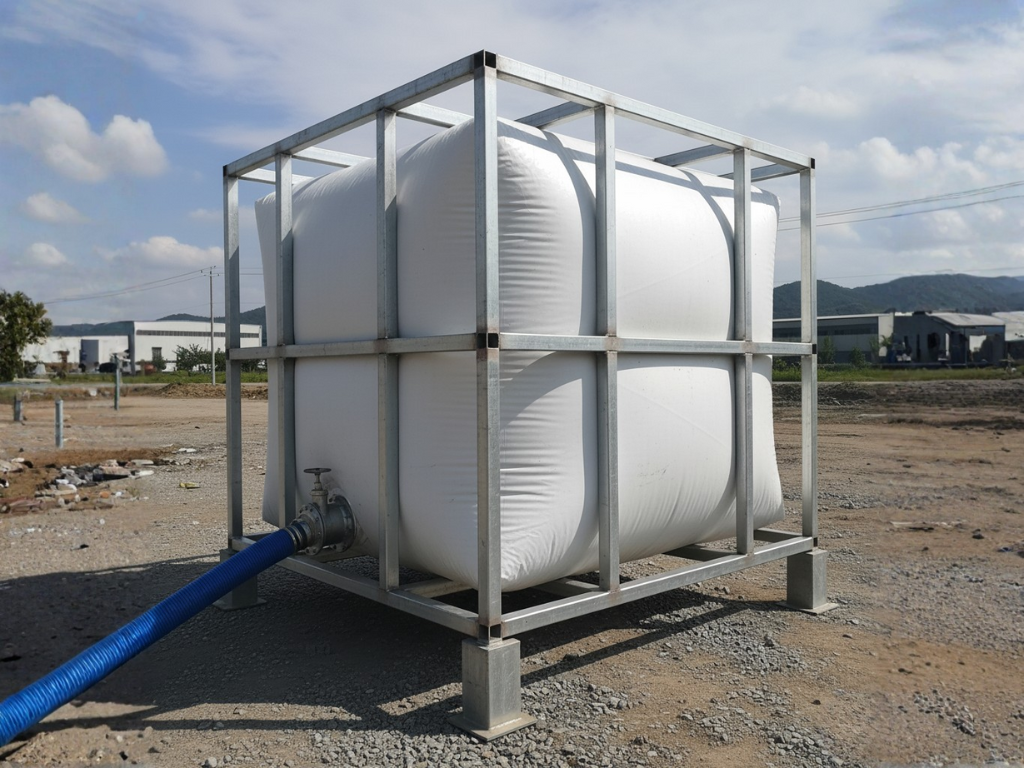

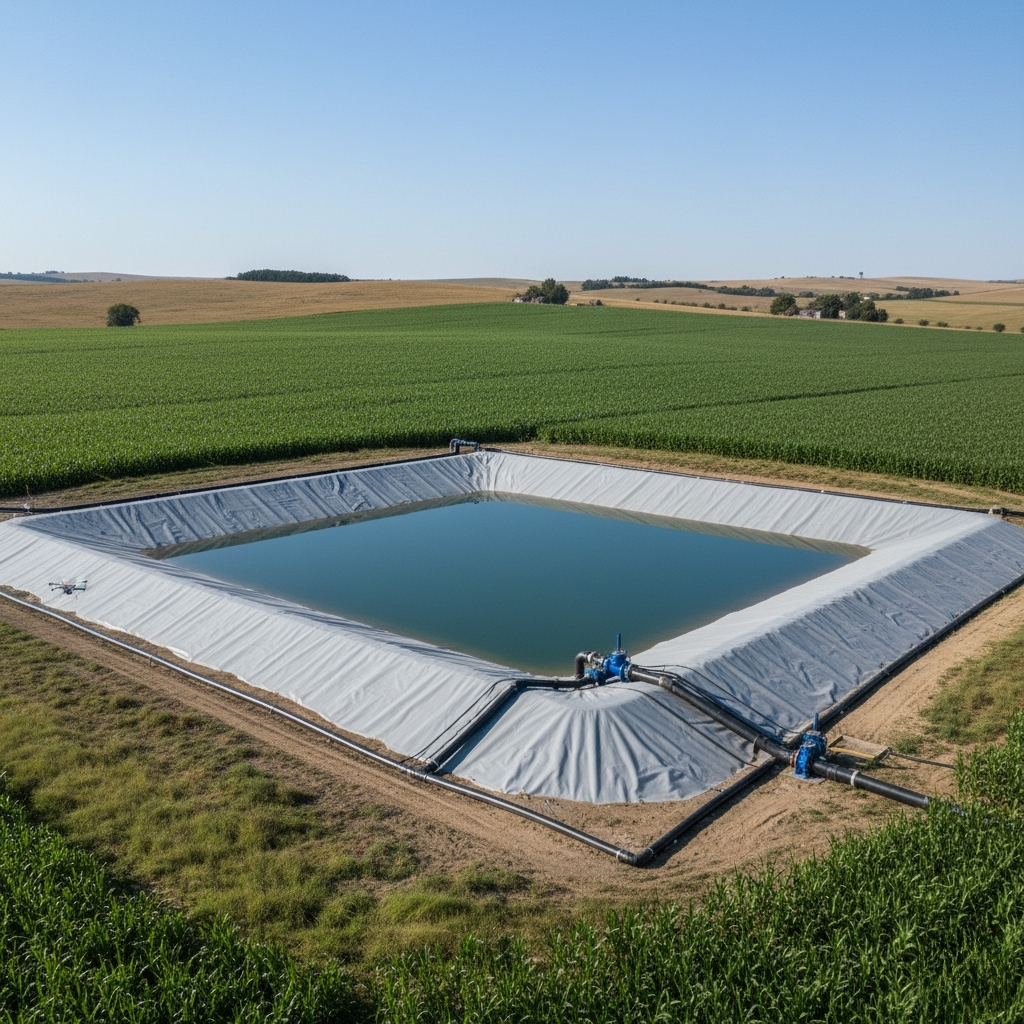

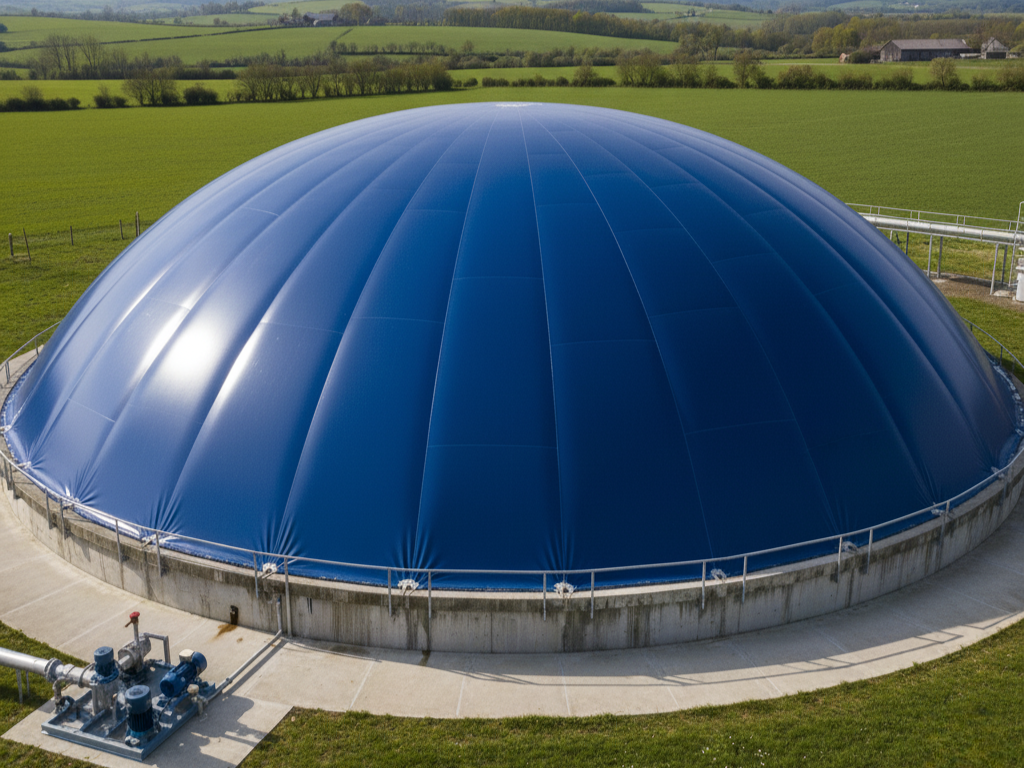

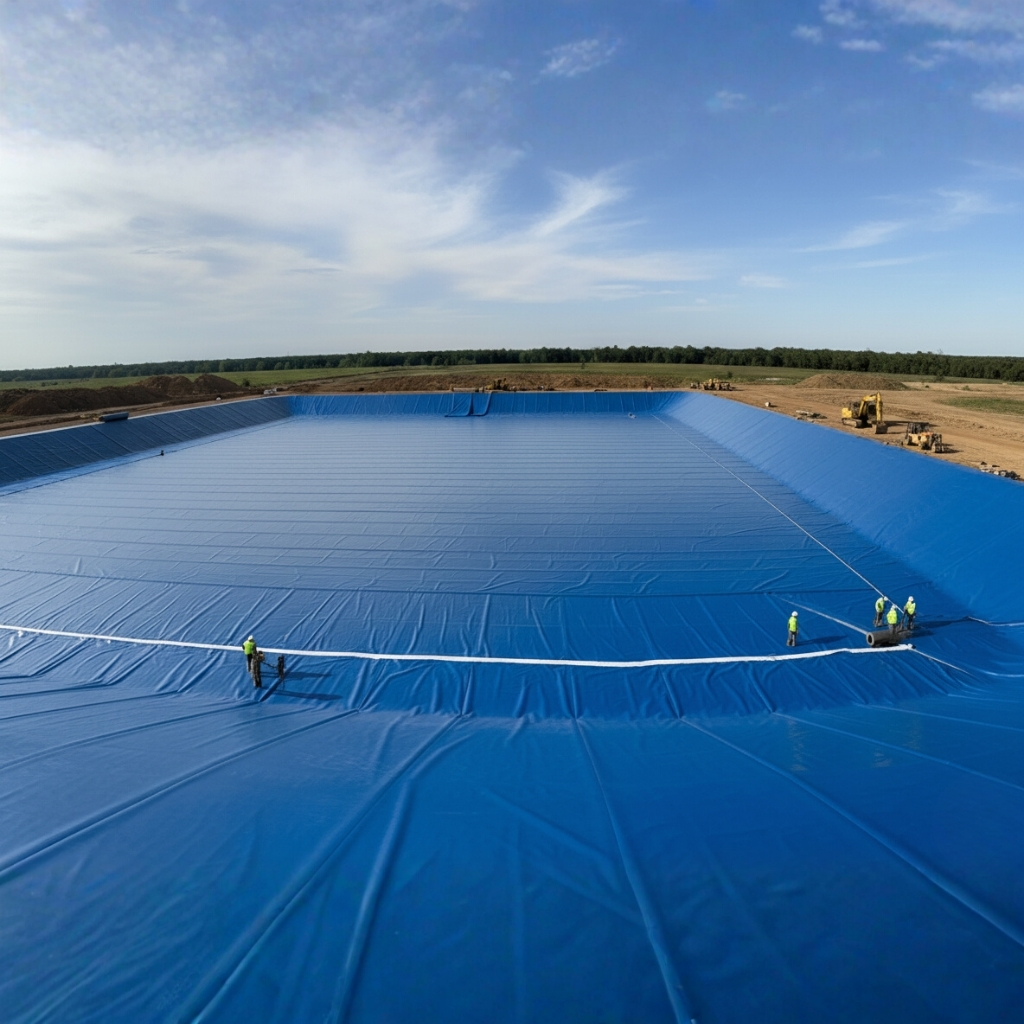

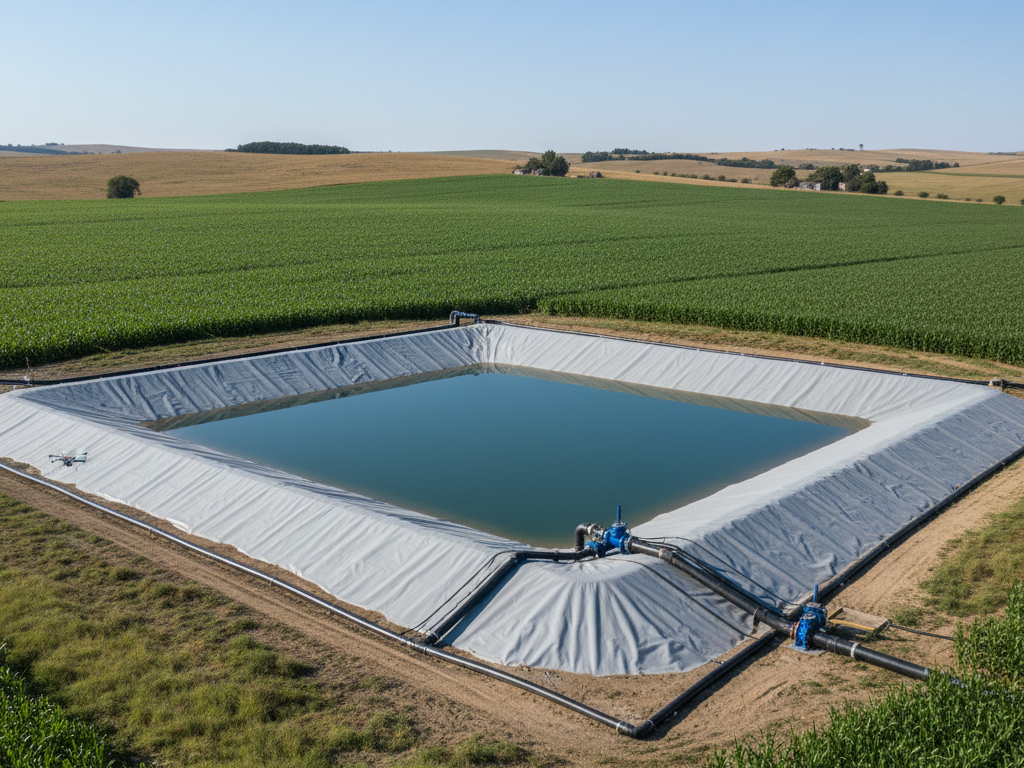

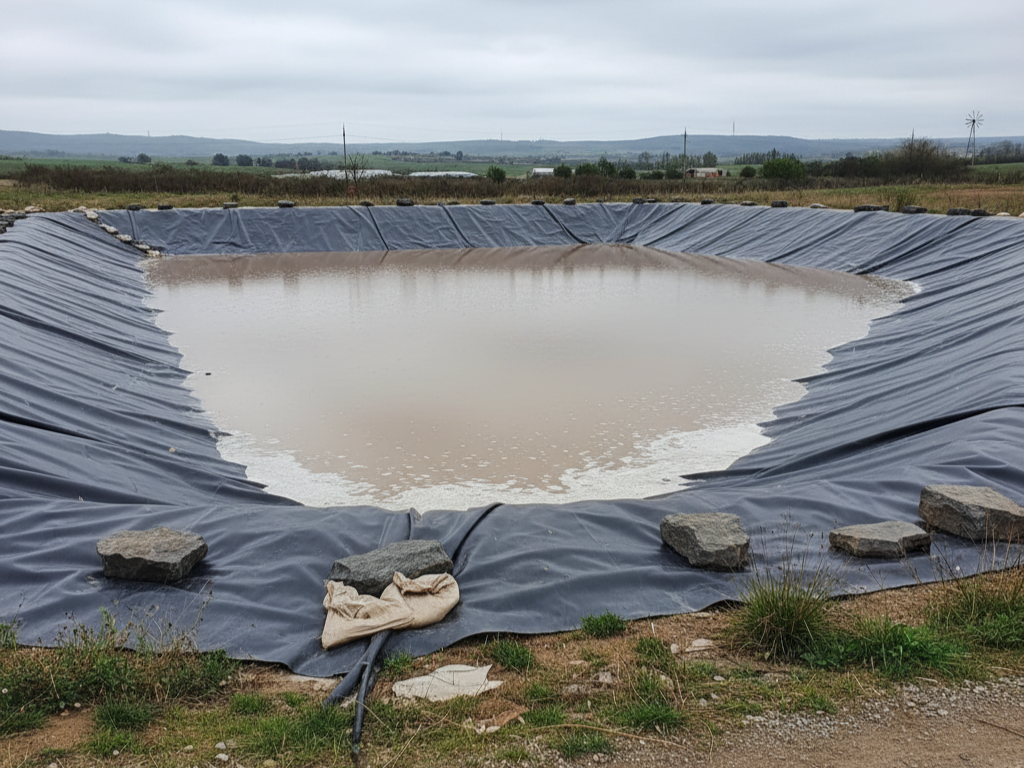

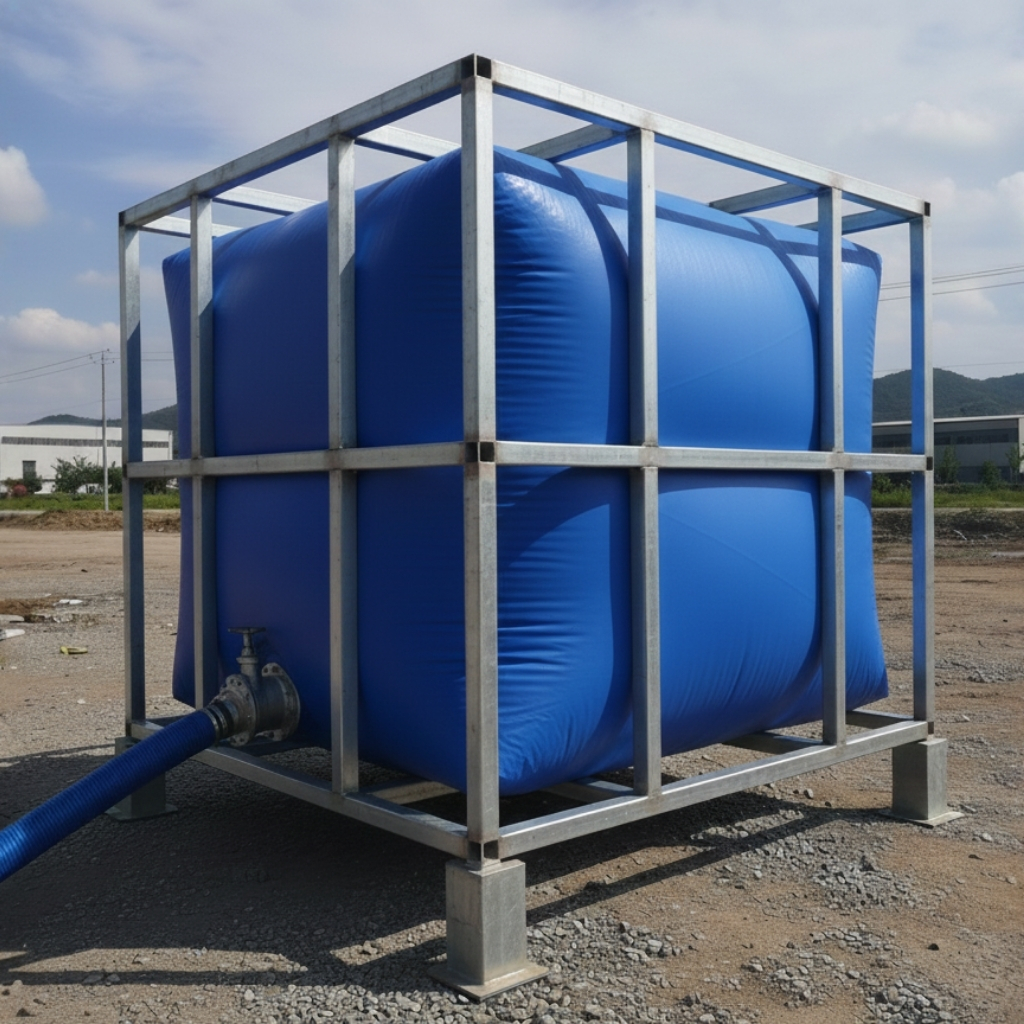

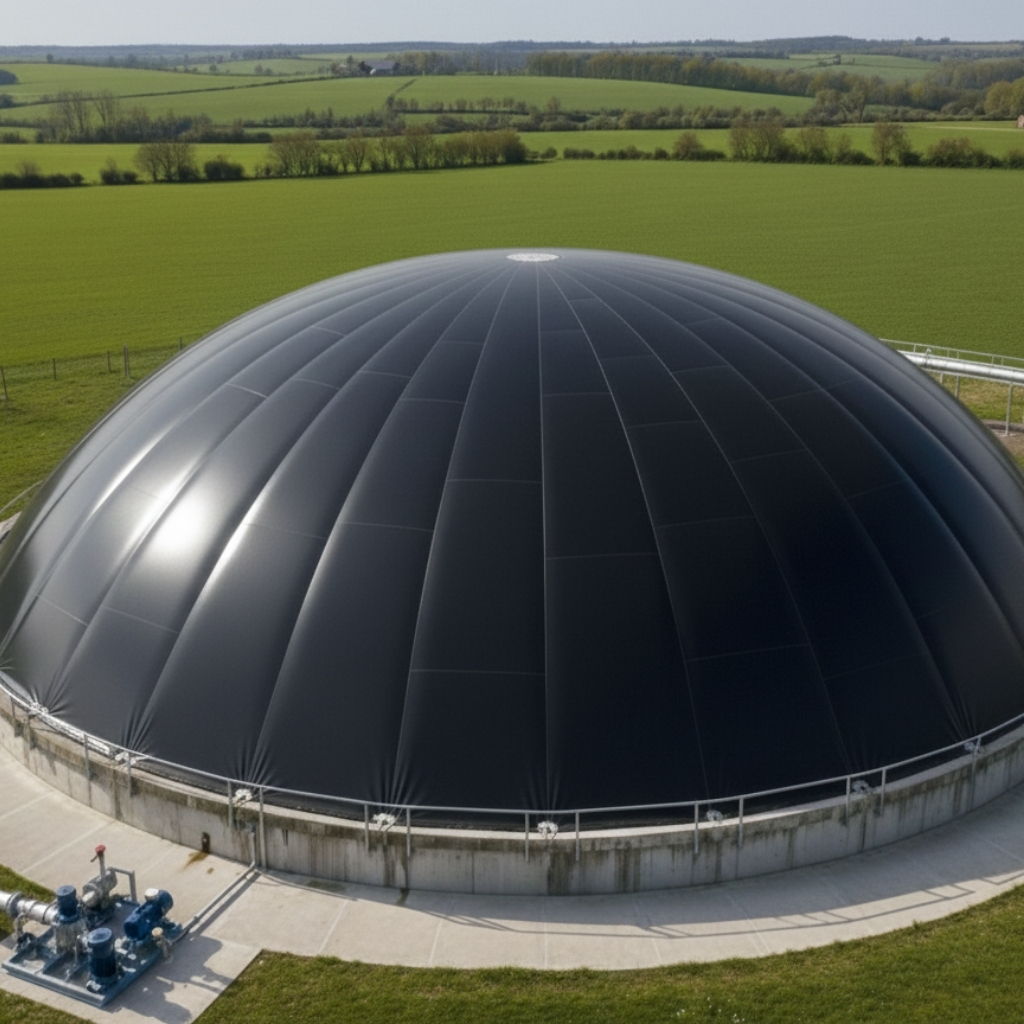

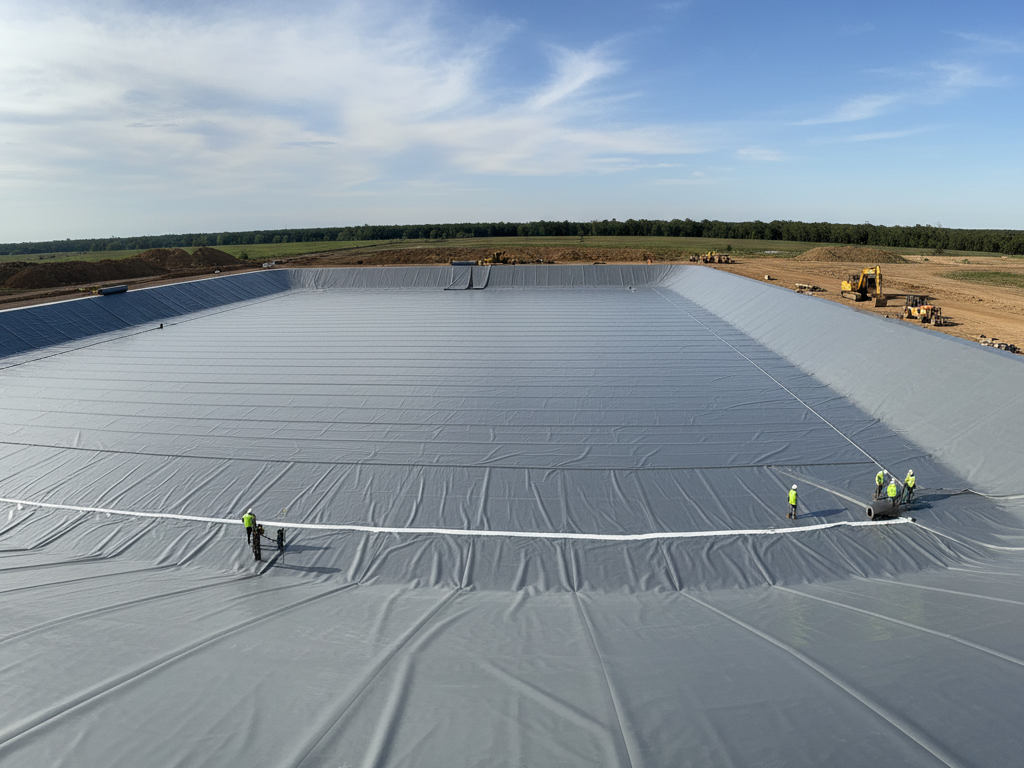

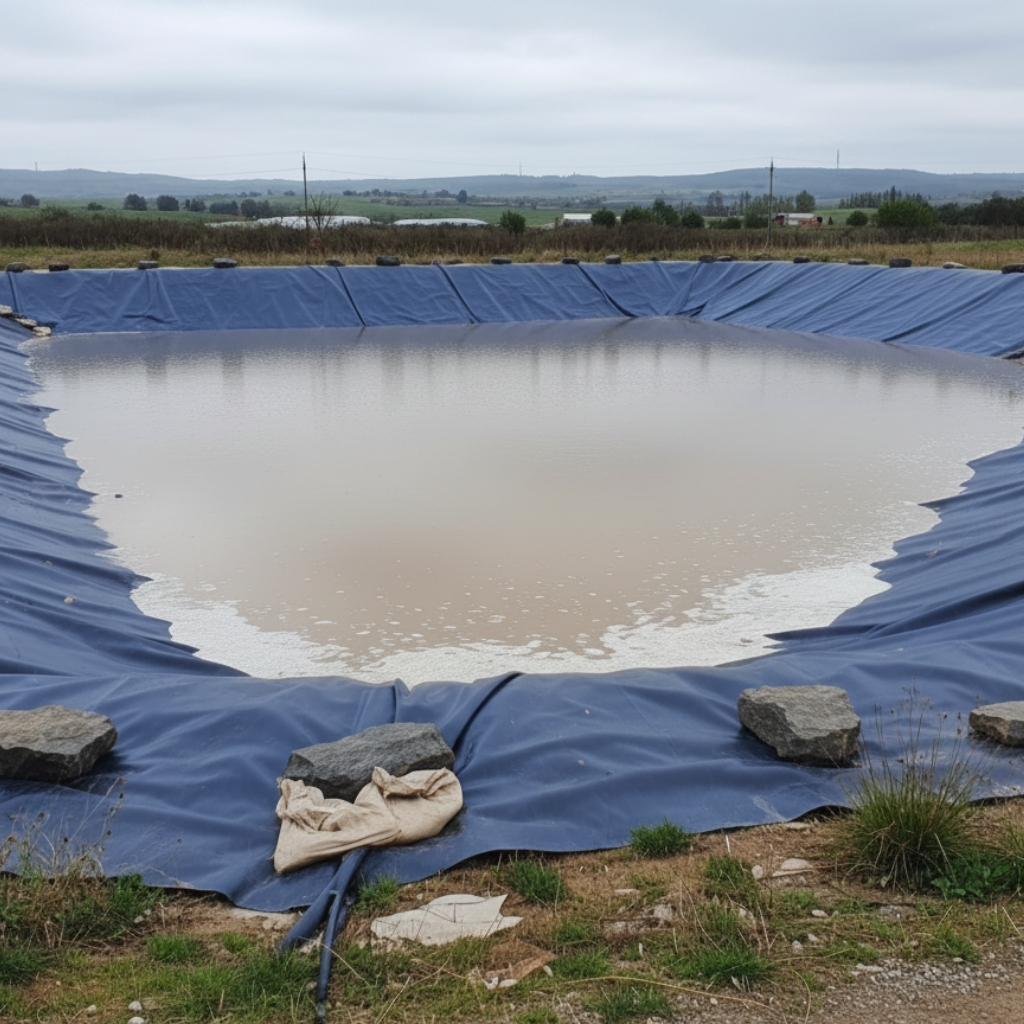

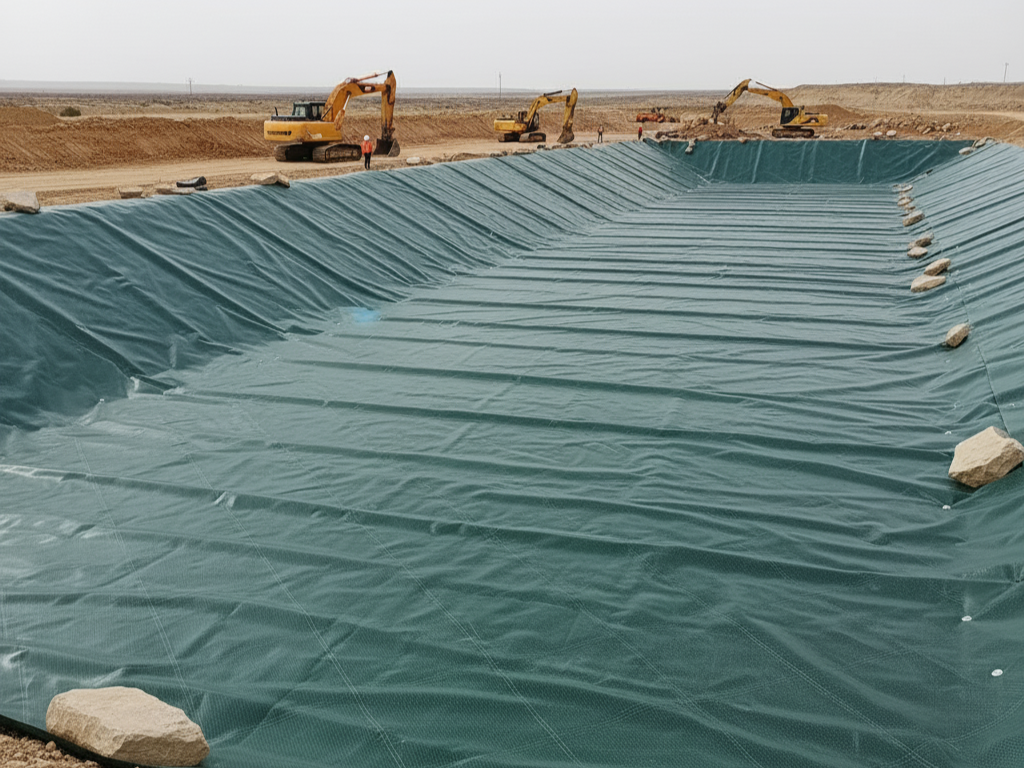

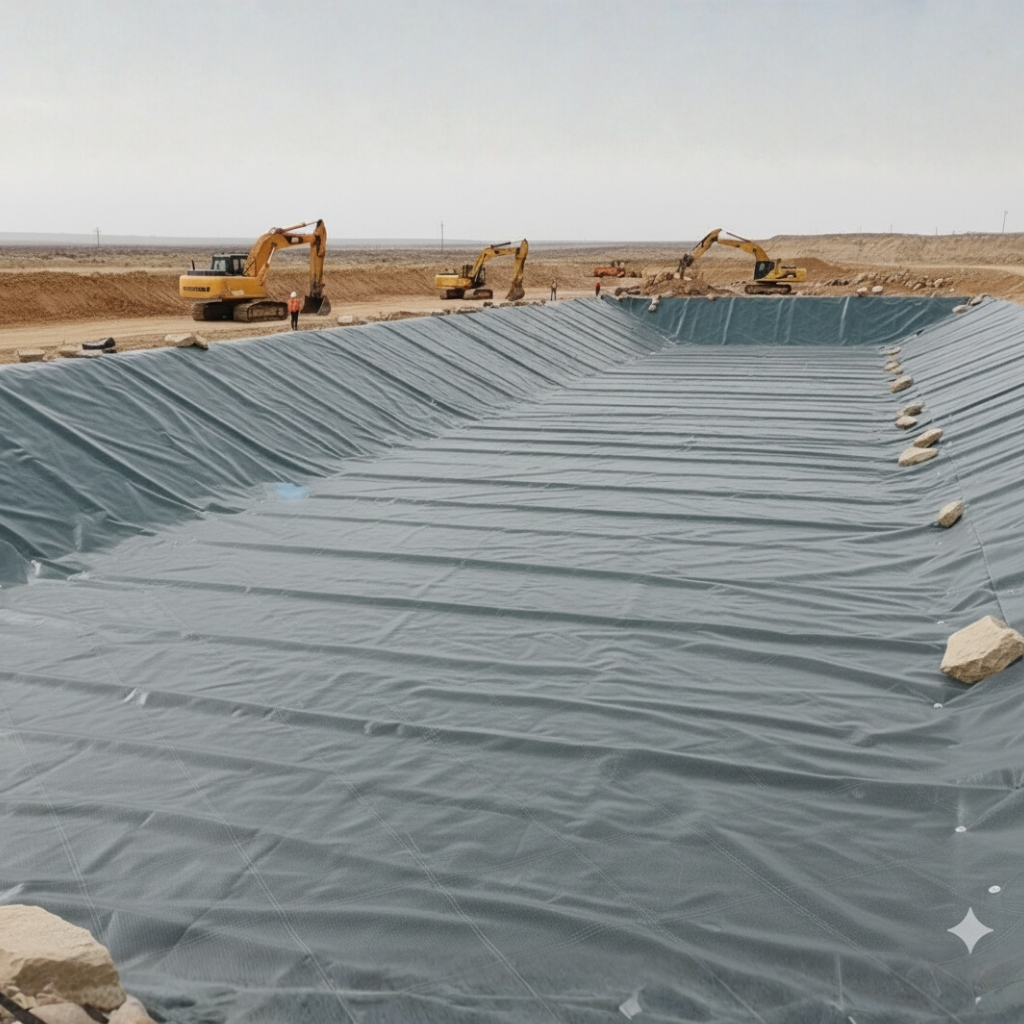

COATFLEX Environment connects industrial performance with environmental responsibility through durable, weather-resistant protection. Its impermeable surface and chemical stability make it the reliable choice for water tanks, biogas digester tanks, agriculture covers, liners, and outdoor containment systems.
Advantages
- Impermeable coating engineered for containment and protection
- Chemical and moisture resistance suited for environmental use
- Reinforced base provides mechanical stability under field conditions
- UV and weather durability for continuous outdoor exposure
- Compatible with field welding and on-site repair methods
- Dimensional stability prevents sagging and leakage
- Suitable for sustainable and agricultural installations
Applications
Technical datasheet
| Properties | Test Method | Unit | T670 | T900 |
| Emboss | - | - | Acrylic | Acrylic |
| Base Fabric | DIN 60001 | - | PES | PES |
| Yarn Count | DIN 1049-2 | nr/inch | 23*23 | 30*30 |
| Titer of Yarn | DIN 2060 | Denier | 1000D | 1000D |
| Weight | DIN EN ISO 2286-2 | g/m2 | 670 | 900 |
| Weight of Base Fabric | DIN 12127 | g/m2 | 210 | 275 |
| Thickness | - | mm | 0.56 | 0.75 |
| Width | - | m | 2.5 | 3.0 |
| Tensile Strength (Warp) | EN ISO 1421 | N/5cm | 3000 | 4000 |
| Tensile Strength (Weft) | EN ISO 1421 | N/5cm | 2800 | 4000 |
| Tensile Strength (Warp) | DIN 53363 | N | 320 | 550 |
| Tensile Strength (Weft) | DIN 53363 | N | 300 | 500 |
| Adhesion Strength (Face) | EN ISO 2411 | N/5cm | 100 | 100 |
| Adhesion Strength (Back) | EN ISO 2411 | N/5cm | 100 | 100 |
| Flame Retardancy | NF P92-507, DIN 4102 | - | M2(1), B1(1) | M2(1), B1(1) |
| Service Life | - | years | 3-5 years | 7-8 years |
| Threshold Temperature | DIN EN 1876-1 | °C | -30°C~70°C | -30°C~70°C |
| Light Transmission | ISO 13468-1 | % | 9 | 2 |
(1) only with fire retardant version (T670 FR and T900 FR)
The data contained in the technical specification is given for information only and is based on our current knowledge of the products concerned. This information is given to our customers for the purpose of informing them and helping them in their research, and does not constitute any formal or implicit guarantee as to its use.
Date: 4/11/2022
