Clear PVC

Flexible PVC roll for strip doors and curtain doors

Flexible PVC roll for swing doors, rapid doors, roll-up doors and automatic doors

Ribbed PVC roll for strip doors and curtain doors

Re-inforced PVC roll for swing doors, rapid doors, roll-up doors and automatic doors

Transparent PVC films for tents, marquees, canopy boat and cars

	Transparency/clarity
	Thermal insulation
	Noise insulation
	Long durability
	Impact & scratch resistance
	Environment friendly & recyclable

Formats

Rolls, strips, curtains, panels and films
Smooth, ribbed, reinforced, rounded edges, matt surface.

	Min	Max
Width	75 mm	2.2 m
Thickness	0.3 mm	12 mm
Length	20 m	100 m

About standard clear

Extruflex's standard clear flexible PVC range offers the greatest clarity, brightness, durability, flexibility, and resistance to damage and chemicals.

Standard flexible PVC is great for insulating doorways or cold rooms, giving you a degree of temperature control wherever the flexible PVC is installed, allowing you to save money on your energy bills.

They are also extremely easy to clean. Like the entirety of the Extruflex flexible PVC range, the standard PVC range is 100% recyclable and is non-phthalate.

Applications

Industrial curtains or strip doors with flexible PVC - EXTRUFLEX

Swing doors with flexible PVC - EXTRUFLEX

Rapid doors with flexible PVC - EXTRUFLEX

Tents and marquees with transparent PVC film - EXTRUFLEX

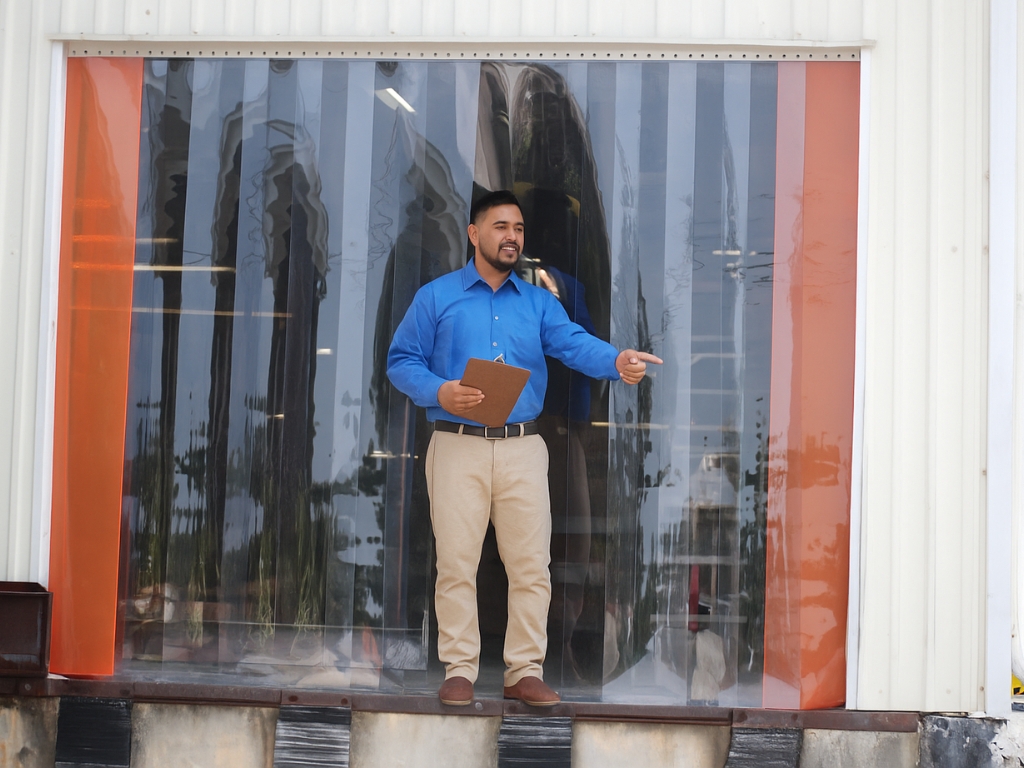

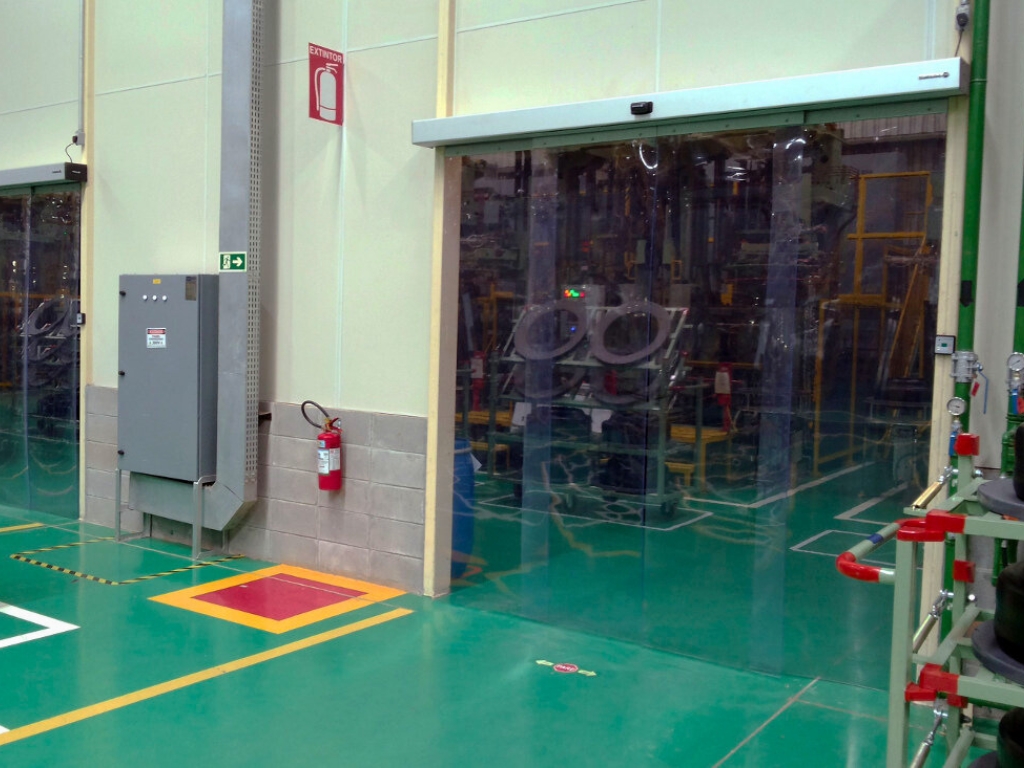

Strip and curtain doors with flexible PVC - EXTRUFLEX

Sliding doors with flexible PVC - EXTRUFLEX

Café terrace with flexible PVC - EXTRUFLEX

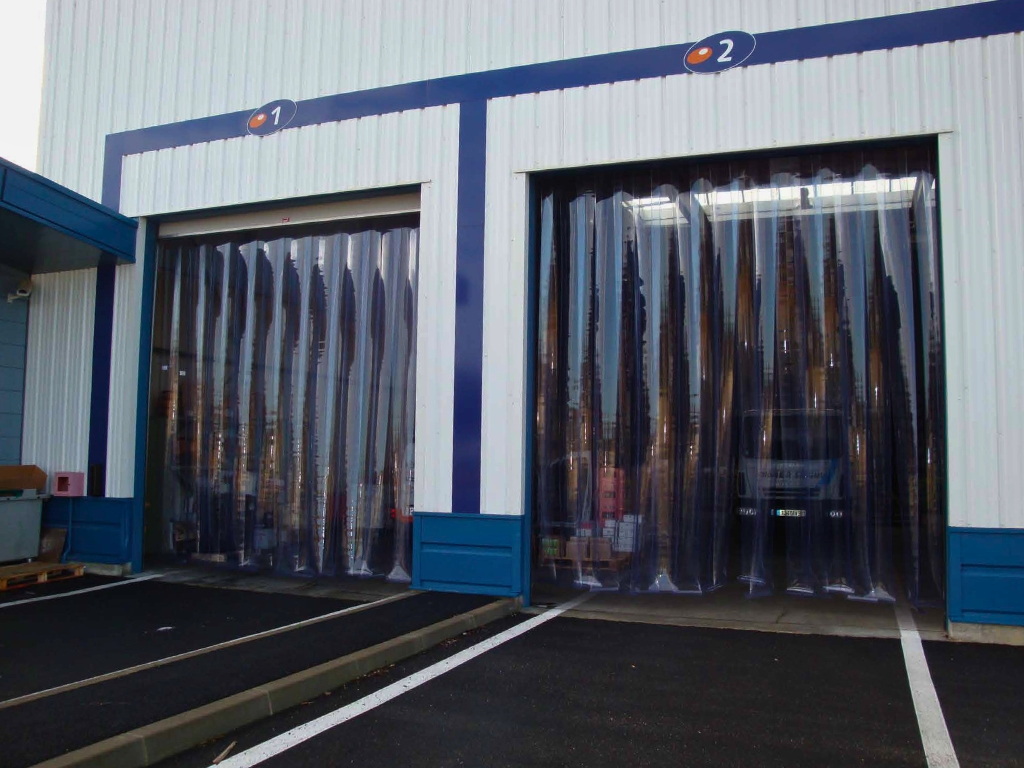

Industrial strip doors with flexible PVC

Hardware

Hook-on-Track & Plate Set

Quickmount

Twin track

Cool strip hanging system

Swing doors kit

Ecoflex

Why Use Standard Flexible PVC?

Standard flexible PVC has a variety of uses but is most commonly used as PVC strip curtains or PVC swing doors, acting as a thermal insulating barrier in doorways, while still allowing pedestrian or heavier vehicle traffic to pass through freely.

This is often the case in warehousing or factories, where traffic needs to flow through doorways freely but the doorways need to be insulated to keep the warehouse or factory warm and sealed.

Commun applications

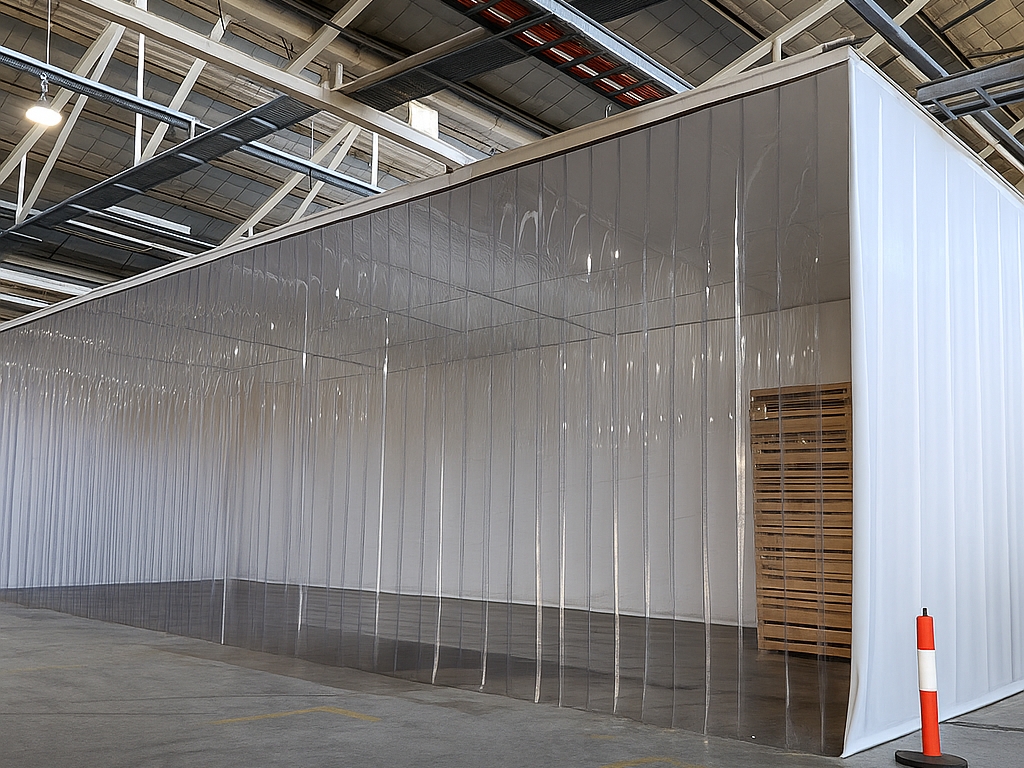

Strip Curtains or Partitions
Manufacturing factories
Food processing plants
Medical facilities
Supermarkets/Retail
Warehousing and distribution

Flexible PVC Helps Save You Money and Energy

Recognised as one of the premier thermal insulating plastics available, flexible PVC offers a cost-effective solution for insulating warehouses or factories.

Its inherent waterproof and air-tight properties further enhance its thermal insulation capabilities, preventing the intrusion of cold and wet weather through doorways.

The low thermal conductivity of flexible vinyl translates to substantial thermal energy savings, contributing to reduced energy bills while ensuring a comfortable environment for employees.

Opting for flexible PVC as a means of insulating doorways is a straightforward decision, given its cost-effectiveness, ease of installation, simple maintenance, and high replaceability in the event of damage.

Constant Insulation

PVC strip curtains or PVC swing doors are frequently employed in doorways to enhance insulation and protect buildings from the elements. Serving as an effective barrier, these installations help retain warmth within the structure.

Their operational flexibility allows for easy opening and closing, facilitating smooth traffic flow without the need for operators to dismount from forklifts to manually open warehouse doors. Additionally, these doors automatically close after passage, mitigating the risk of inadvertent oversight in leaving doorways open.

This feature ensures airtight insulation while simultaneously accommodating a seamless and unrestricted flow of traffic.

Sound Insulating Properties

Flexible PVC has sound insulating properties, able to reduce sound pollution from passing through the PVC.

This reduces the amount of noise heard on the other side of the PVC, drastically reducing the sound pollution in the area. The PVC material behaves like a soft viscoelastic mass that can absorb sound waves and dissipates its energy on contact with the PVC. This property of the PVC lets it absorb all sound waves, especially low frequency sound waves, better than other materials.

This reduces the noise produced in loud areas, such as factories, keeping workers and any neighbouring factories happy.

An average reduction of over -30 dB, which is equivalent to wearing mufflers
1 to 5 mm of thickness is enough to get a -30 dB reduction in sound

Special formats

Ribbed PVC

Ribbed PVC has all the same properties as standard PVC except for the fact that it has small indents (ribs)that prevent the curtain from sticking together.

The ribs also slightly reinforce the PVC making it a bit stronger and able to take more abuse than the standard PVC.

They still have all the qualities of the standard PVC, having excellent clarity, durability and flexibility.

Reinforced PVC Sheet

Reinforced PVC sheet is reinforced with a fiber mesh, to heavily reinforce the PVC and make it highly resistant to damage.

This lightweight but strong sheeting is extremely durable and able to withstand even the worst abuse. Although it is extremely durable due to the fiber mesh found inside it, it still allows light to pass through the PVC.

Reinforced PVC sheet has a variety of uses, a few of which include builders' dust sheeting, temporary window repairs, garden cloches or temporary windows when carrying out building work.

Technical datasheet

Properties	Standard	Units	Standard	Description
Light transmittance	ASTM D 1003	%	85	Visible light rate transmitted through the material.
Shore A hardness	EN ISO 868	Sh A	80	Index based on a flat indenter's penetration depth. Scale from 0 (Soft) to 100 (Hard).
Tearing resistance	DIN 53515	N/mm	50	Minimum tensile stress required to tear a pre-slit sample.
Tensile strength at break	ASTM D 638 EN ISO 527	N/mm²	16	Maximum tensile stress that a material can be subjected to before break.
Elongation at break		%	340	Elongation of the specimen at the break point under tensile stress.
Residual elong. (after break)		%	68	Permanent elongation of the specimen measured after rupture in a tensile test.
Thermal conductivity	ASTM C 177	W/m.K	0,16	Ability to conduct heat. The Lower it is, the more insulation.
Cold bend brittle temp.	ISO 8570	°C	-35	Temperature at which the specimen break under torsion stress. Brittle point (CLASH & BERG).
Min. usage temp.	EN 1876	°C	-15	Temperature range where material keep its mechanical properties (flexibility).
Max. usage temp.	EN 1876	°C	+50
Vicat softening temp.	EN ISO 306	°C	50	Temperature at which the specimen is penetrated to a depth of 1 mm by a 1 kg flat indenter of 1 sq. mm.
Specific heat capacity	ISO 11357	kJ/kg.K	1,6	Heat energy required to increase the temperature of one kilogram of the material by one degree Celsius.
Sound reduction	DIN 52210	dB	>35	Average sound level (freq. 0,1 to 3,2 kHz) decreased by a 1,76 sq.m. and 5 mm thick PVC curtain.
Reaction to fire	EN 13501-1	Class	-	Standard classifications of material self-extinguishing and resistance to combustion.
UV/IR filter	ISO 25980	-	-	Ability to filter welding rays allowing the use of this material as a welding protection screen.
UV resistance	ISO4892	-	Yes	Ability to resist to UV (Sun, welding arc).
Surface resistivity	ASTM D257	.10¹⁰ Ω/□	30	Material surface electric resistivity measured with a 100 V direct voltage.
Water absorption	EN ISO 62	%	-0,2	Material mass variation after exposure to humid conditions. (<0 if released / >0 if absorbed)
Anti-insect	-	-	-	Special ability to keep insects away.(Food processing plants, tropical regions)
Density	ASTM D 792	g/cm³	1,22	Mass per unit volume.

This information given to our customer in good faith to inform him and to help him in his search, does not constitute any formal or implicit guarantees as to its use.
