COATFLEX Architectural

An outdoor patio or structure with a combination of wood paneling and large clear vinyl screens hanging between the supports, providing an enclosure.

farm lang using coatflex as cover for tractors and other farm materials

Where design meets durability, COATFLEX Architectural offers refined surfaces, visual harmony, and dependable performance for modern architectural applications.

	High resistance
	Fireproof
	UV resistant
	Flat and low unroll shrinkage
	Easy welding

Format

670 ou 900 grs/m2
Width 2.5 or 3.0m
Length : 60 or 300m

Colors

RAL : 1003, 3002, 5002, 6026, 7035, 7038, 9010 et 9016
Other colors available upon request

Description

COATFLEX Architectural combines technical precision with refined visual appeal, enabling designers to achieve light, form, and color without compromise. It offers elegance and durability for façades, awnings, shading systems, and modern tensile architecture.

Advantages

Strong polyester base with high tear and abrasion resistance
Stable weld seams; consistent gauge and dimensional stability
Durable PVC coating for long service life in frequent use
Reliable flexibility for handling, cutting, and fabrication
Good UV and weather resistance for indoor–outdoor operation
Color and surface uniformity across production batches
Balanced performance-to-cost for high-volume projects

Applications

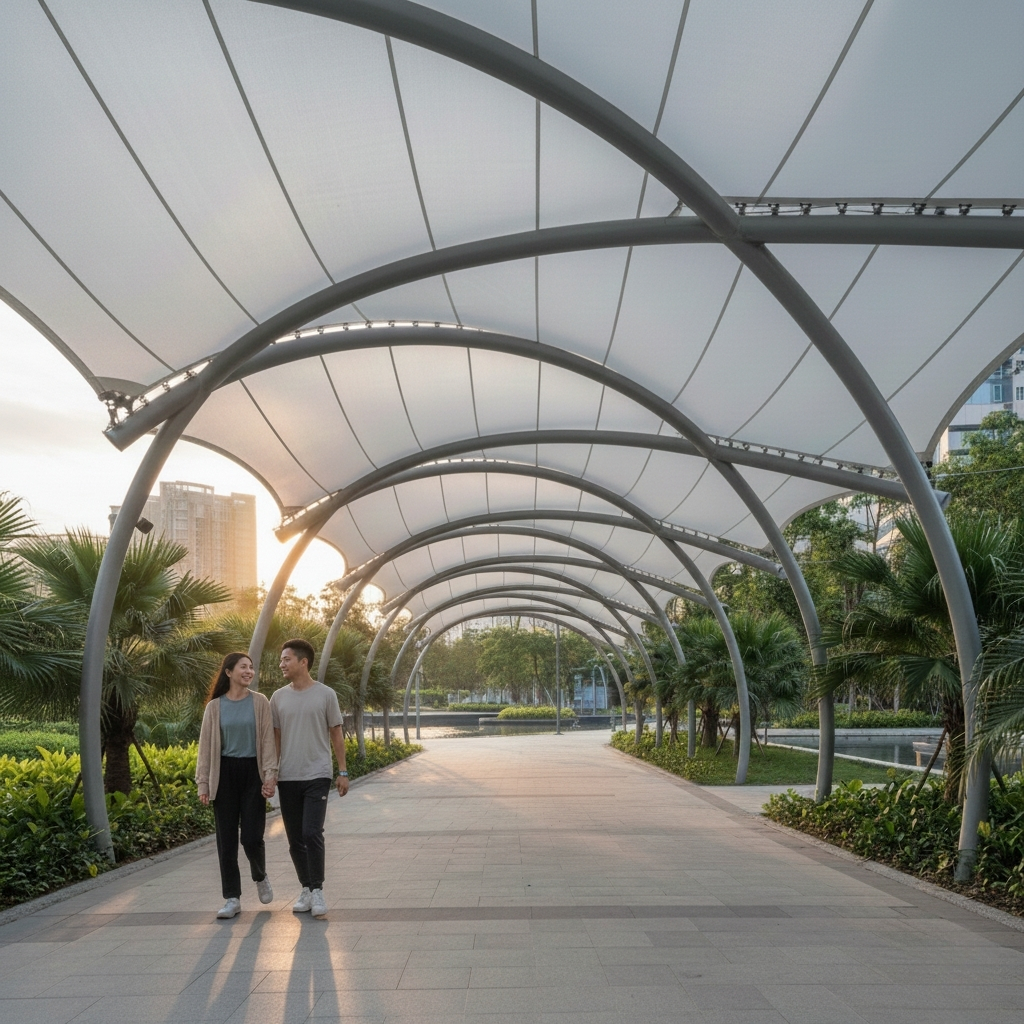

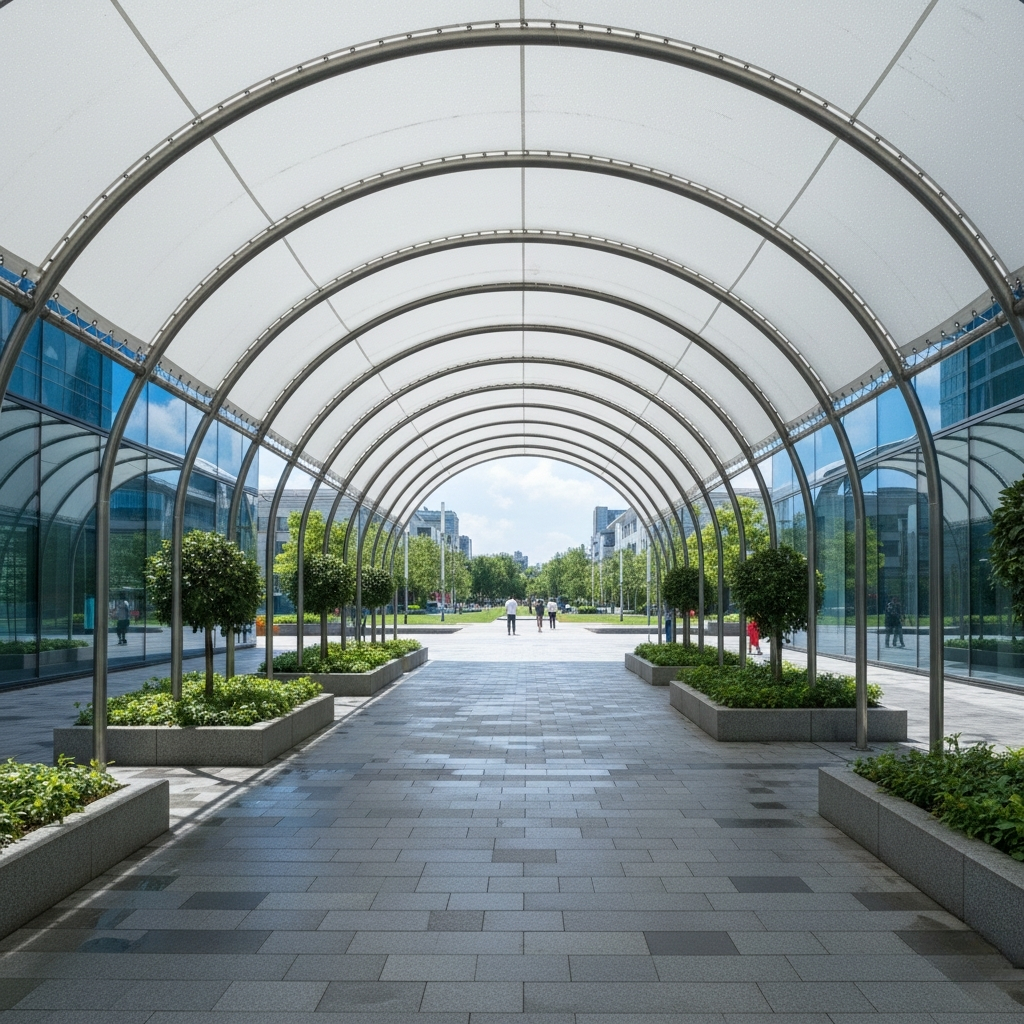

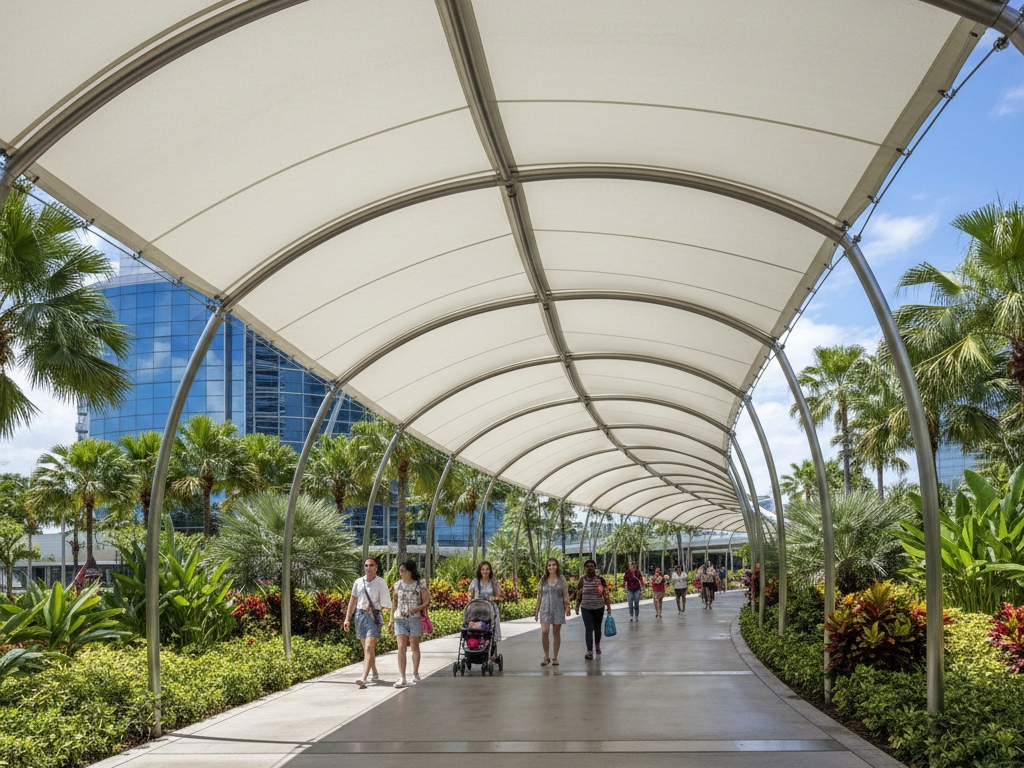

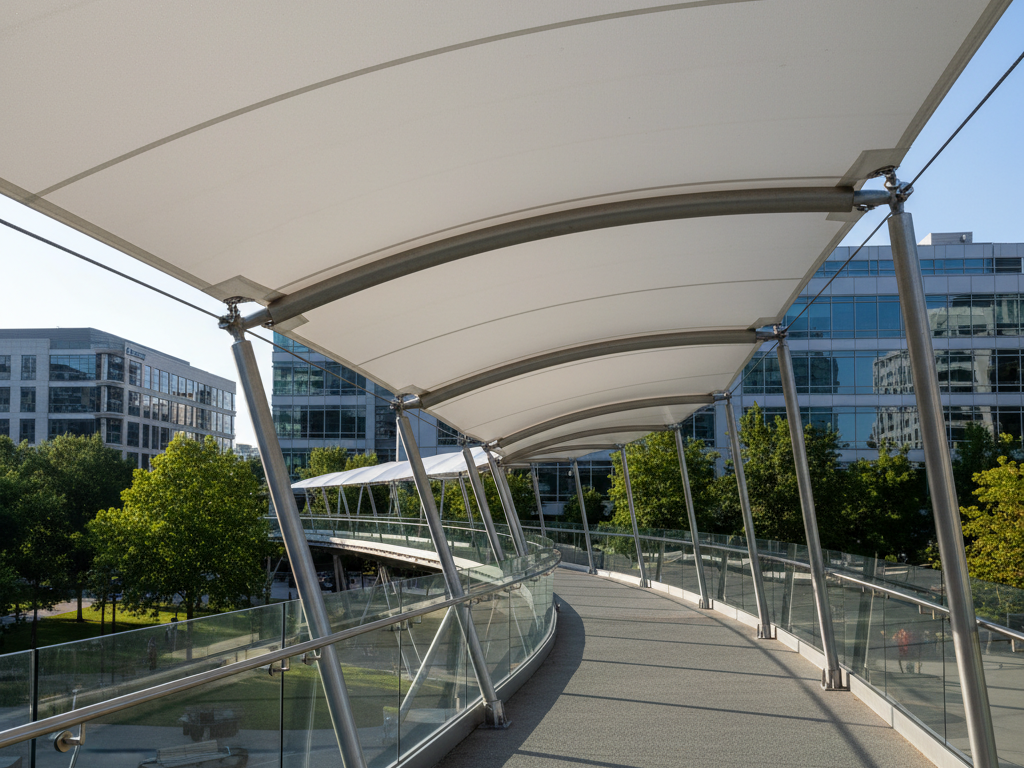

coatflex Architectural tensioned walkway canopy

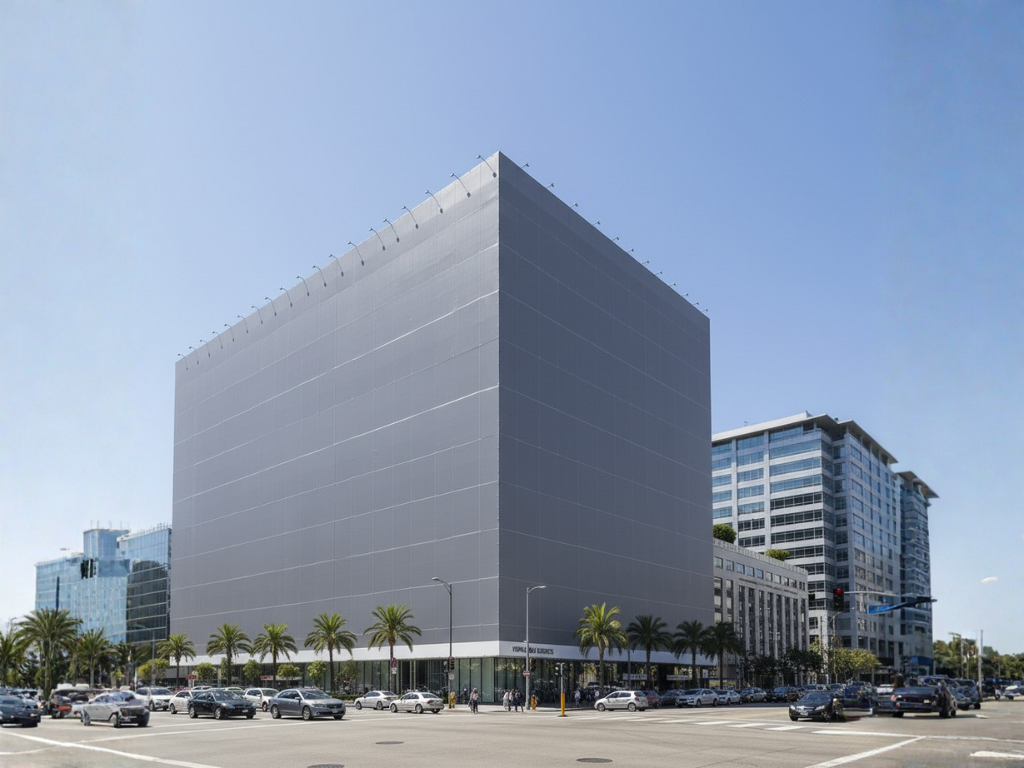

coatflex Building façade membrane in bright daylight

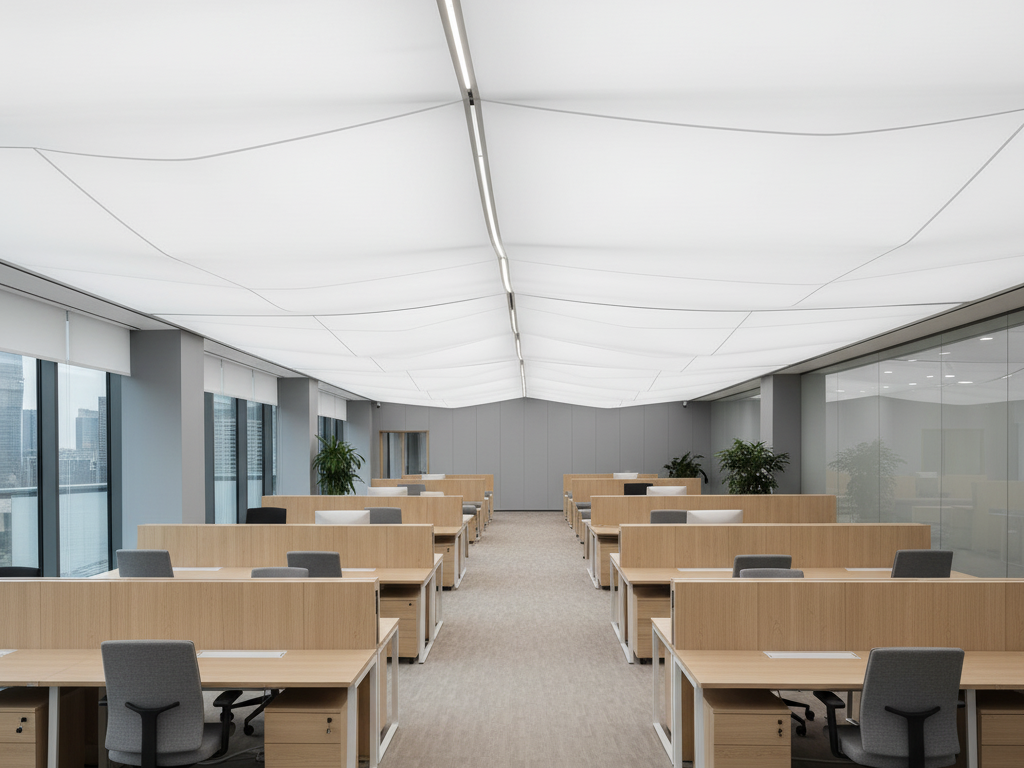

coatflex Interior light-diffusing membrane ceiling

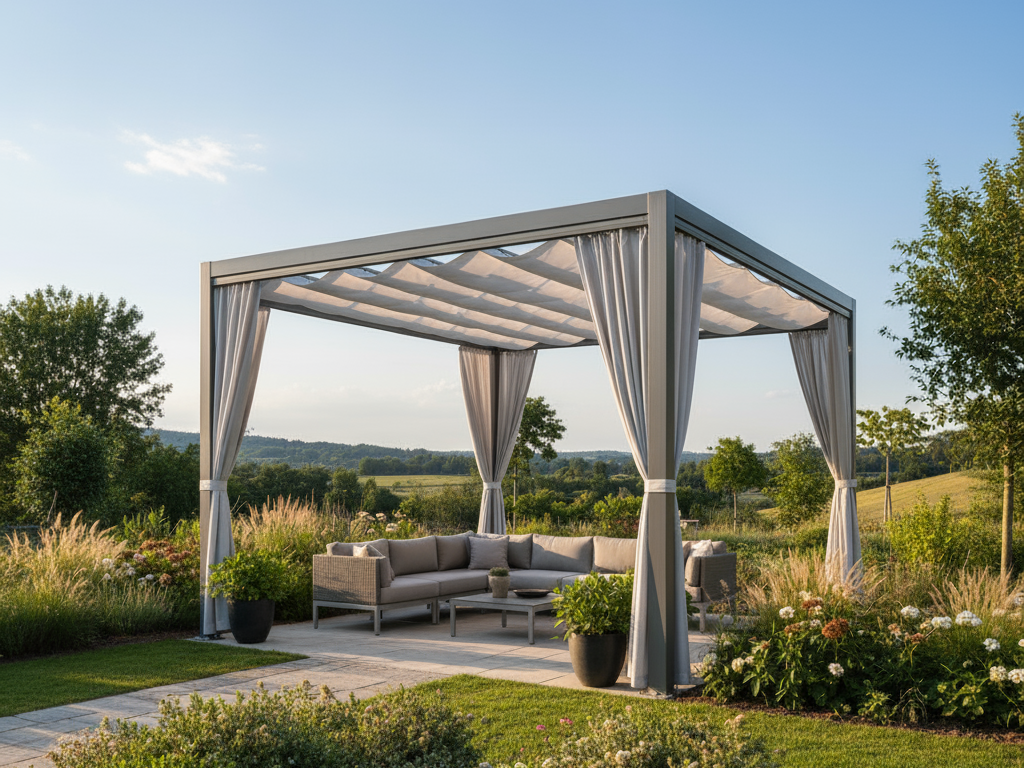

coatflex pergola with translucent fabric

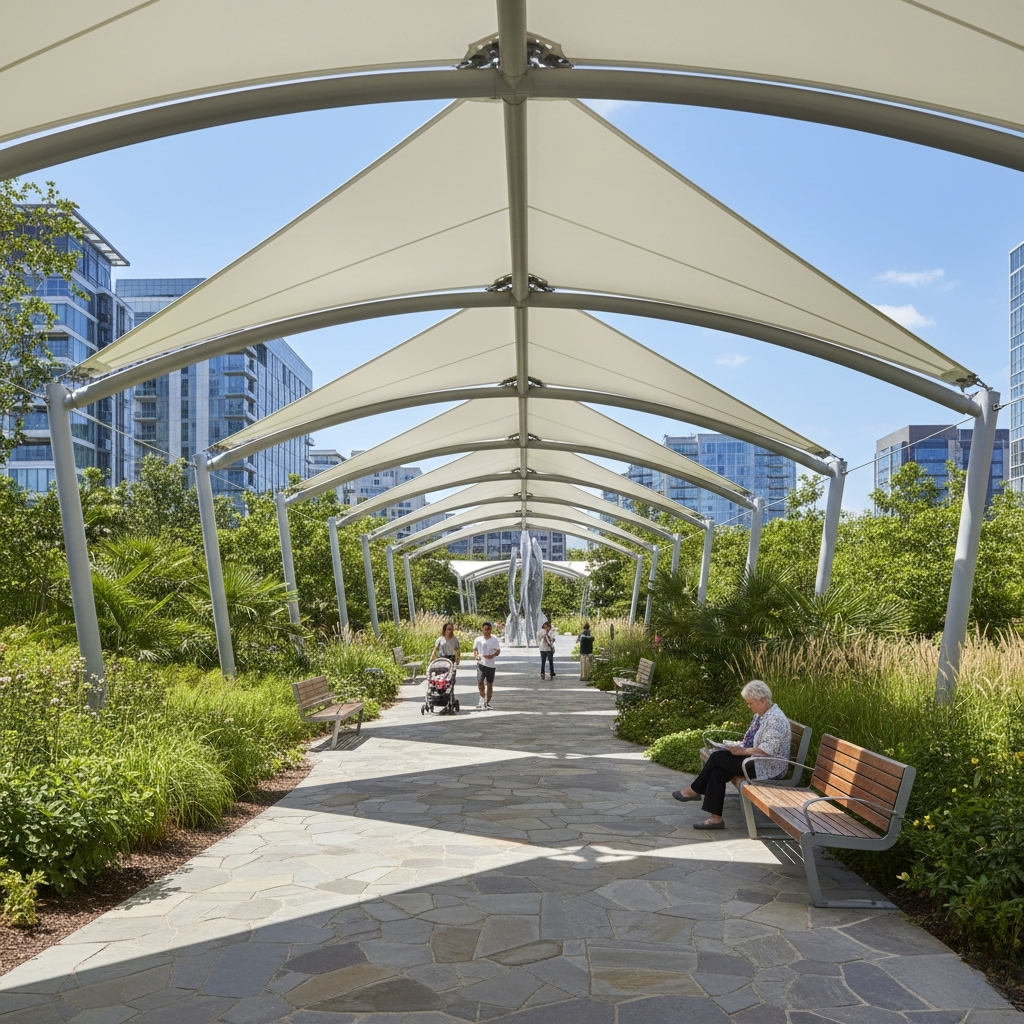

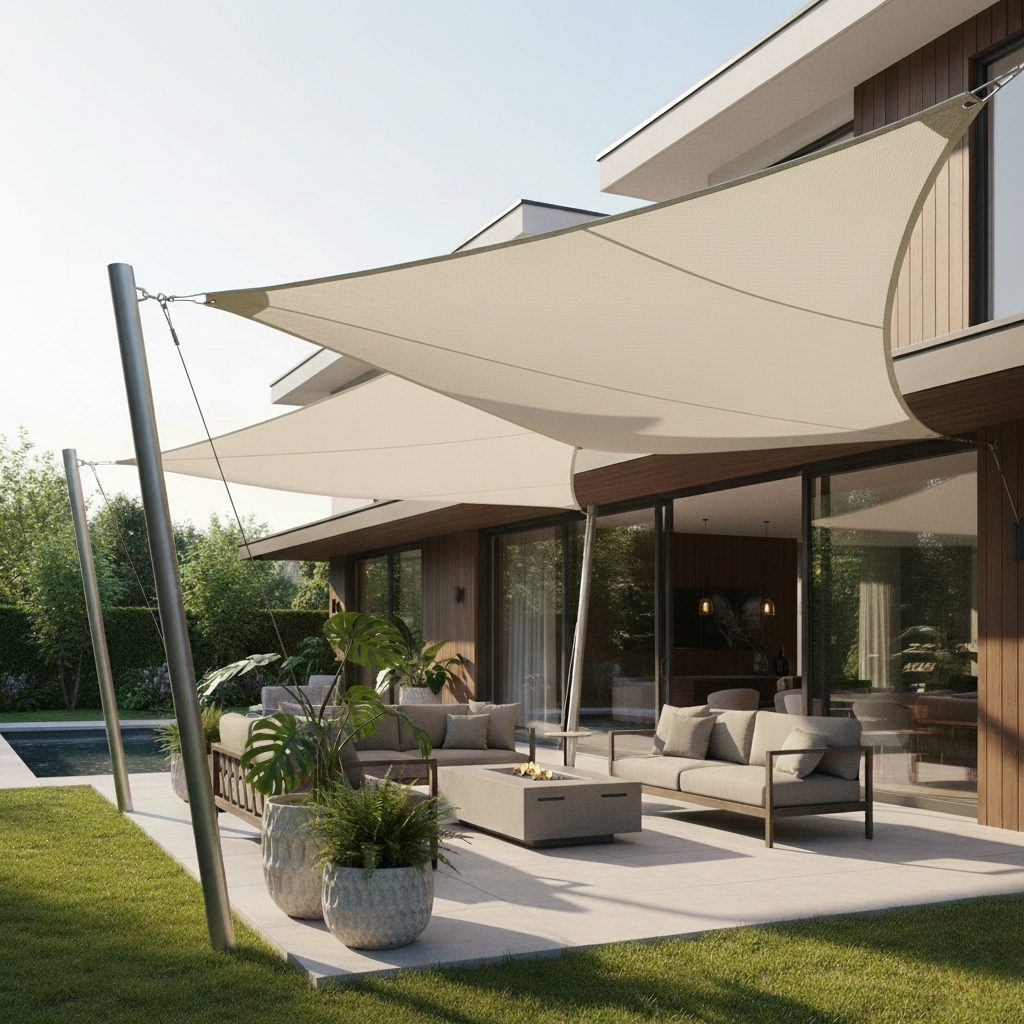

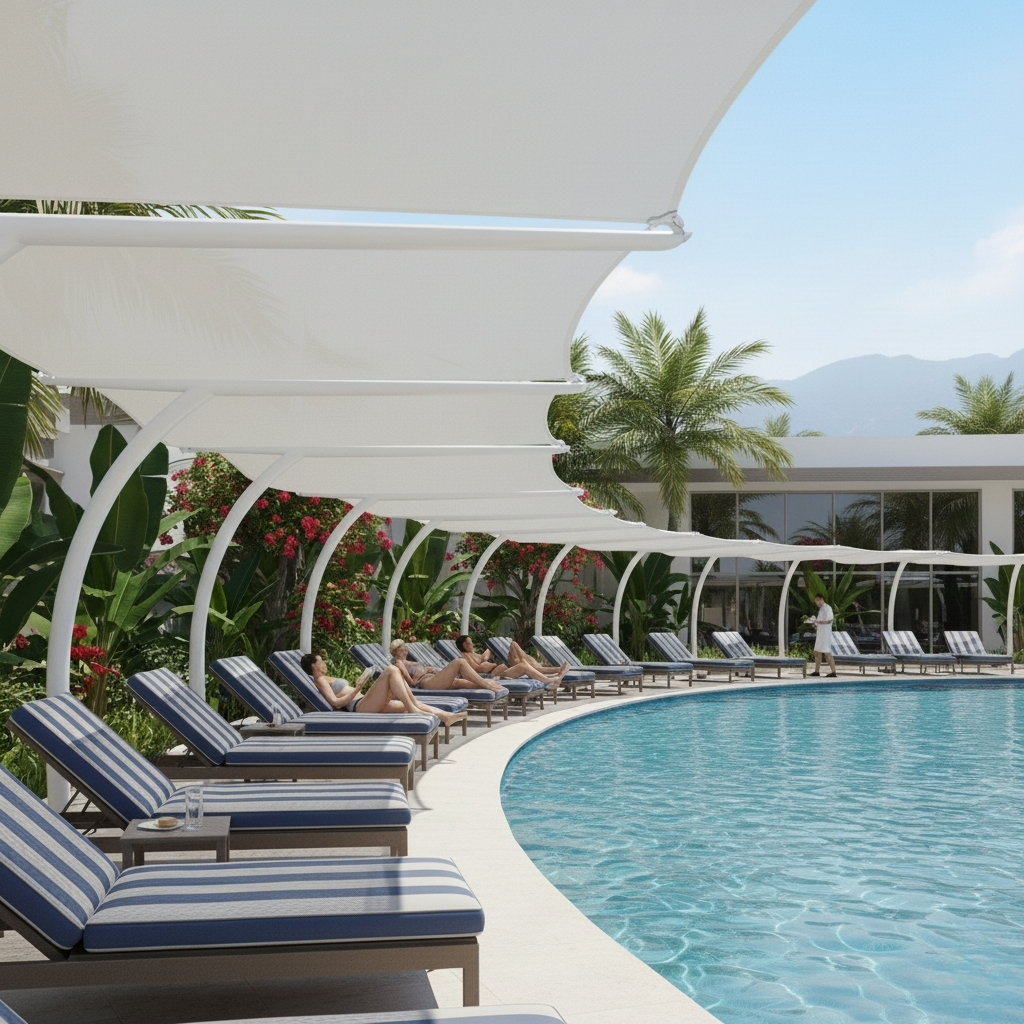

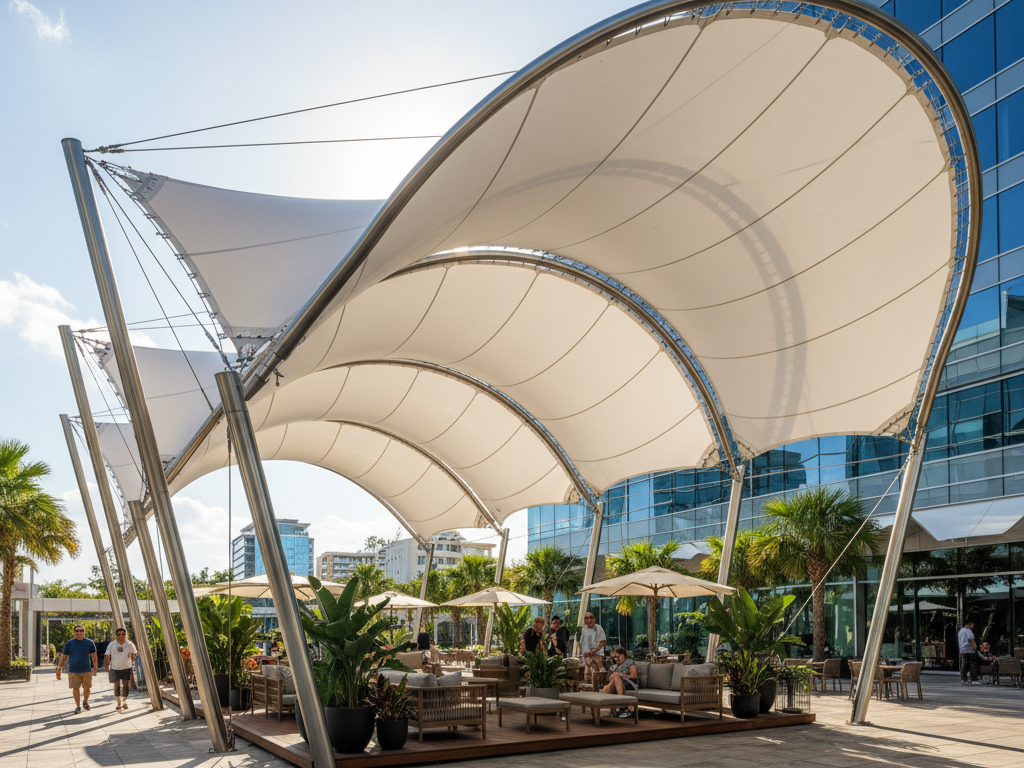

coatflex Tensile shade canopy with curved form

Technical datasheet

Properties	Test Method	Unit	T670	T900
Emboss	-	-	Acrylic	Acrylic
Base Fabric	DIN 60001	-	PES	PES
Yarn Count	DIN 1049-2	nr/inch	23*23	30*30
Titer of Yarn	DIN 2060	Denier	1000D	1000D
Weight	DIN EN ISO 2286-2	g/m²	670	900
Weight of Base Fabric	DIN 12127	g/m²	210	275
Thickness	-	mm	0.56	0.75
Width	-	m	2.5	3.0
Tensile Strength (Warp)	EN ISO 1421	N/5cm	3000	4000
Tensile Strength (Weft)	EN ISO 1421	N/5cm	2800	4000
Tensile Strength (Warp)	DIN 53363	N	320	550
Tensile Strength (Weft)	DIN 53363	N	300	500
Adhesion Strength (Face)	EN ISO 2411	N/5cm	100	100
Adhesion Strength (Back)	EN ISO 2411	N/5cm	100	100
Flame Retardancy	NF P92-507, DIN 4102	-	M2⁽¹⁾, B1⁽¹⁾	M2⁽¹⁾, B1⁽¹⁾
Service Life	-	years	3-5 years	7-8 years
Threshold Temperature	DIN EN 1876-1	°C	-30°C~70°C	-30°C~70°C
Light Transmission	ISO 13468-1	%	9	2

⁽¹⁾ only with fire retardant version (T670 FR and T900 FR)

The data contained in the technical specification is given for information only and is based on our current knowledge of the products concerned. This information is given to our customers for the purpose of informing them and helping them in their research, and does not constitute any formal or implicit guarantee as to its use.

Date: 4/11/2022
