Everywhere you need high transparency... think FINEVINYL
Everywhere you need high fire resistance... think FINEVINYL

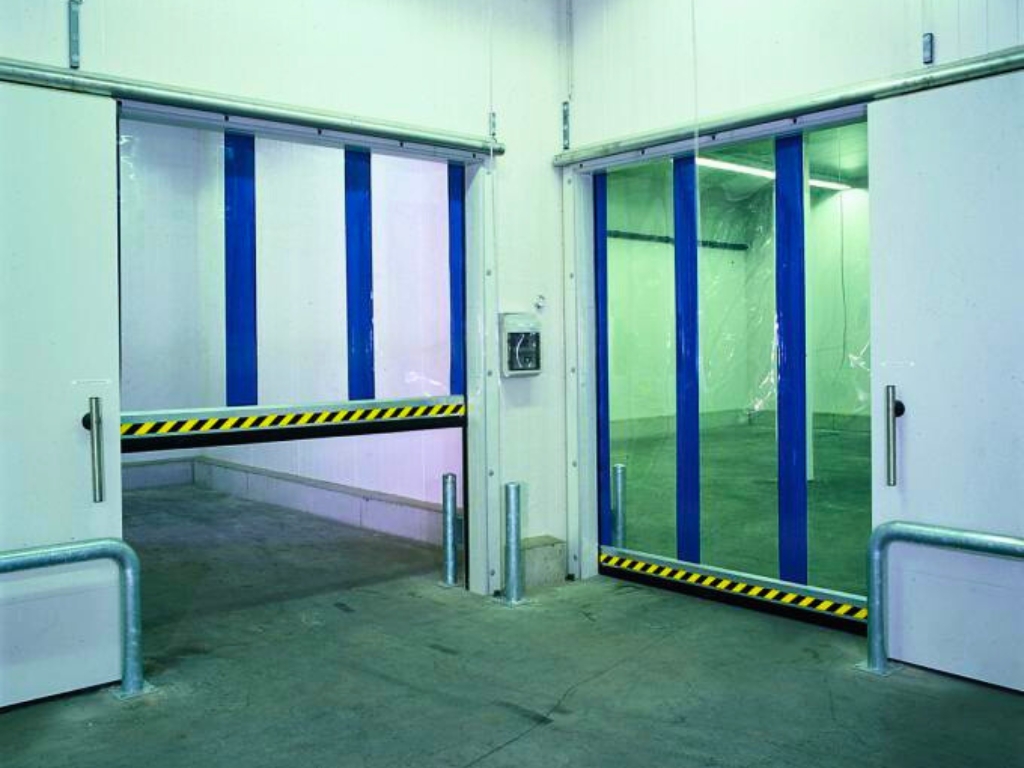

Ideal for tents, porch roof, marquees, terrace, boats awning, canopies, boats, cars, yachting, doors window or partitions, FINEVINYL films is preferred solution for its high transparency, durability and UV resistance.
FINEVINYL are available standard, fire retardant (M2 or B1), UV resistant, low shrinkage from 0.3 to 1mm thick,
All FINEVINYL are exclusively made of NON-PHTHALATE plasticizers for maximum safety of people and environment
PROPERTIES | TEST METHOD | UNIT | STANDARD (3S) | FIRE RETARDANT | STANDARD (2S) |
REFERENCE | - | - | REF425 | REF690 | REF436 |
WIDTH | - | mm | 1400 | 1400 | 1400 |
LENGTH | - | m | 20 to 65* | 20 to 65* | 20 to 65* |
HAND | - | - | 3S | 3S | 2S |
WEIGHT / roll | - | kg | 35 | 36 | 35 |
WEIGHT / m² | - | gr /m² | 372 to 1240* | 390 to 1300* | 375 to 1255* |
WEIGHT / m | - | gr /m | 520 to 1736* | 546 to 1820* | 525 to 1760* |
FINISH | - | - | DOUBLE POLISHED | DOUBLE POLISHED | DOUBLE POLISHED |
COLOR | - | - | CLEAR BLUE | CLEAR BLUE | CLEAR BLUE |
UV STABILIZED | - | - | YES | YES | YES |
FIRE RETARDANT | NF P92-507 | - | - | M2/B1 | - |
LOW TEMP RESISTANCE (IMPACT TEST) | ASTM D746 | °C | -40 to -30* | -7 to -25* | -25 to -35* |
TEAR RESISTANCE | ASTM D1004-13 | N | 21 to 70 (X)* 19 to 66 (Y)* | 19 to 67 (X)* 17 to 65 (Y)* | 23 to 78 (X)* 21 to 72 (Y)* |
TENSILE STRENGTH | ISO 527-1:2012 ISO 527-3:2001 | MPa | 20 to 26 (X)* 25 to 29 (Y)* | 18 to 23 (X)* 15 to 26 (Y)* | 22 to 28 (X)* 27 to 32 (Y)* |
ELONGATION AT BREAK | ISO 527-1:2012 ISO 527-3:2001 | % | 350 to 380 (X)* 320 to 420 (Y)* | 340 to 370 (X)* 310 to 400 (Y)* | 330 to 360 (X)* 310 to 390 (Y)* |
HEAT SHRINKAGE (80°C, 10 min.) | DIN 53377:2007 | % | 0.7 (X) -2.2 (Y) | 0.9 (X) -2.7 (Y) | 0.5 (X) -1.9 (Y) |
The data contained in this technical specification is given for information only and is based on our current knowledge of the products concerned.
This information given to our customer in good faith to inform him and to help him in his search, does not constitute any formal or implicit guarantees as to its use.
